The SH-Series are designed for surgical applications.  Handpieces consist of two major components: main body of the handpiece and removable nose guard; coded with the Handpiece Name followed by the Nose Guard initials (e.g.: SH-26SP).  When straight burs are used,

a nose guard must be used (with a silicone disc inside of the “S” and “SP”).

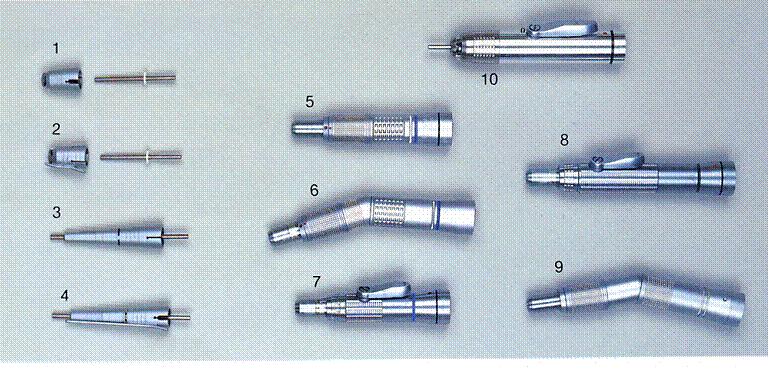

1)          NOSE GUARD S: Short with a notch: to be used with a standard 45mm long dental bur.  Longer burs with small heads and straight shanks may be used,

2)          NOSE GUARD SP:  Short with irrigation pipe

3)          NOSE GUARD L: Long to be used with surgical burs longer than 65mm, with shank lengths of 60mm (with embedded bearing)

4)          NOSE GUARD LP:  Long with irrigation pipe

5)          SH-26: 1:1 Twist-Ring Chucking Straight Handpiece

6)          SH-27: 1:1 20˚ Angled Twist-Ring Handpiece

7)          SH-28: 1:1 Lever Chucking Handpiece; when Nose Guard and the test bar are removed, accepts standard dental attachments, such as contra and prophy angles.

8)          SH-29: 2.7:1 Reduction Speed with lever chucking for slower speed/higher torque

9)          SH-31: 1:2 Double Speed Angled Twist-Ring Handpiece

10)          LHP11: Heavy duty non-autoclavable Lab Handpiece

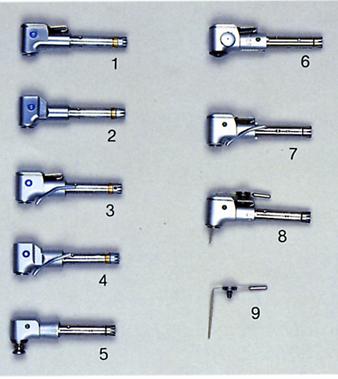

1)          CH07: 1:1 Latch Type Contra Head

2)          CH08: 1:1 Friction Grip for 1.6mm dia. turbine burs with bur remover

3)          CH11B: Same as CH07 with Irrigation Pipe

4)          CH21B: Same as CH08  with irrigation pipe

5)          *CH31GR: 2:1 Reduction Speed Prophy Head (*made by KAVO)

6)          *CH62G: 10:1 Reduction Speed

7)          *CH67C:  now CH67IC 2:1 Reduction Speed with internal and external irrigation pipes

8)          *CH67I:  now CH67IC

9)          * Irrigation Pipe: for CH67I or 67IC

       (*made by KAVO)

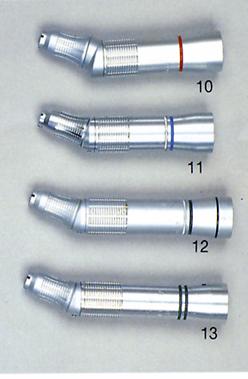

10)           CS10: 1:2 Double Speed Contra Shank

11)        CS132: 1:1 Contra Shank

12)        CS031: 2.7:1 Reduction Speed Contra Shank

13)        CS032: 7.4:1 Reduction Speed Contra Shank

CS-SERIES CONTRA HANDPIECES
