Osada Surgical Tips

Piezo Powered Ultrasonic Scalpels work like Magic!

Utilizing the wonder of the piezoelectric ultrasonic system, OSADA SURGICAL TIPS work like magic: separating soft tissue from the hard surface of bone or tooth with significantly reduced injuries to soft tissue, nerves and vessels, resulting in a faster recovery.

Surgeons have better control of the instrument for precise cutting of the mineralized tissue with minimum force and pressure applied toward the patient.

Incisions are gently placed (like a laser) and users have a good control of precise incisions by adjusting the angle of the tips.

Fine ultrasonic oscillation (ENAC: 30 kHz) with constant irrigation provides a continual antiseptic result.

Osada tips are interchangeable with all ENAC models

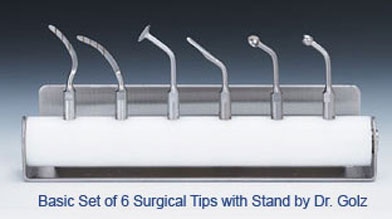

Starter kit is comprised of 6 surgical tips by Dr. Golz, and a tip stand.

REMEMBER: Once the tip is placed on the site, depress the footswitch to activate, and feel the vibration work at the tip to sink in a little, and then move the tip slowly to cut. Depressing the footswitch again may boost the cutting power.

Basic Set of 6 Surgical Tips	Remarks
Sword Tip (S) for the lower jaw (ST 70) Sword Tip (L) for the upper jaw (ST 71)	Atraumatic Extraction (minimal damage to soft tissue, blood vessels and nerves) Flap operation (soft tissue) Osteotomy bone dissection) Sinus window opening Osseous expansion (dilation) on very thin alveolar ridge Creation of insertion path for an implant

Hoe (spade) Tip (ST 72)	Sinus membrane separation Bone tissue collection (cortical & medullary) Soft tissue separation (flap operation) Apicoectomy preparation (removal of infected root apex & destructed osseous tissue) Adherent cyst separation from the bone Cleaning deep socket after extraction of the tooth

Bugle (trumpet) Tip (ST73)	Sinus membrane separation Artificial bone filling Primary fixation of artificial membrane

Spoon Tip (right) (ST 74) (left) (ST75)	Excavation & collection of infected tissue from small areas Collection of small amounts of medulla & spongy bone tissue Smoothing margin of bone & alveolar ridge

NEWLY INTRODUCED SURGICAL TIPS - Now available!

ST07Z serrated tip

Serrated Tip of ST70
Sword Tip "S" (ST70Z)
Due to serration, this tip is much thinner than ST70 Sword Tip S. Apply gentle pressure and move the tip slowly to cut efficiently. The extreme end of the tip is even sharper than ST70 Sword S.

ST83 dimmensional cutter

3-Dimensional Cutter (ST83)
(ø 1.3mm sphere with diamond #200)
Free-hand drawing line is very easily accomplished. Rough diamond coating makes this tip sharp to cut into the bone quickly.

ST83S dimensional cutter

3-Dimensional Cutter (ST83S)
(ø .8mm sphere end with diamond)
Free-hand drawing line is very easily accomplished. Finer grain diamond at the tip makes this tip perfect to finish near the membrane.

ST82 Trumpet Tip

Trumpet Tip (ST82)
(ø 4mm bell with smooth edge)
Derived from ST74 the Trumpet Tip, this smaller bell version is very useful in smoothing out the surface and pressing down the membrane with rounded edges.

ST84 Long Nosed Tip

Long Nosed Tip (ST84)
(ø 1.3mm sphere with diamond #200)
This long nosed tip with diamond coated sphere is perfect to taper the hole made by ST85 Auger. Rough diamond makes this tip very sharp all around the sphere.

ST84S Long Nosed Tip

Long Nosed Tip (ST84S)
(ø .88 mm sphere end with diamond)
Diamond coated sphere is pefect to make a small hole. Smaller diameter and finer grain diamond at the tip make this tip safe to finish near the membrane.

ST85 auger tip

Auger Tip (ST85)
(ø 4mm)
Uniquely shaped tip cuts a long hole in the bone with the least amount of pressure. Use ST84 and ST84S to taper the hole to smaller diameters.
